Imola - White - DEMO XXS (4'9"-5'2") 48927

Regular price
$499.99
Sale price
$499.99
Regular price
$899.99
Sold out
Unit price
per
size guide
Need help selecting your cleats?

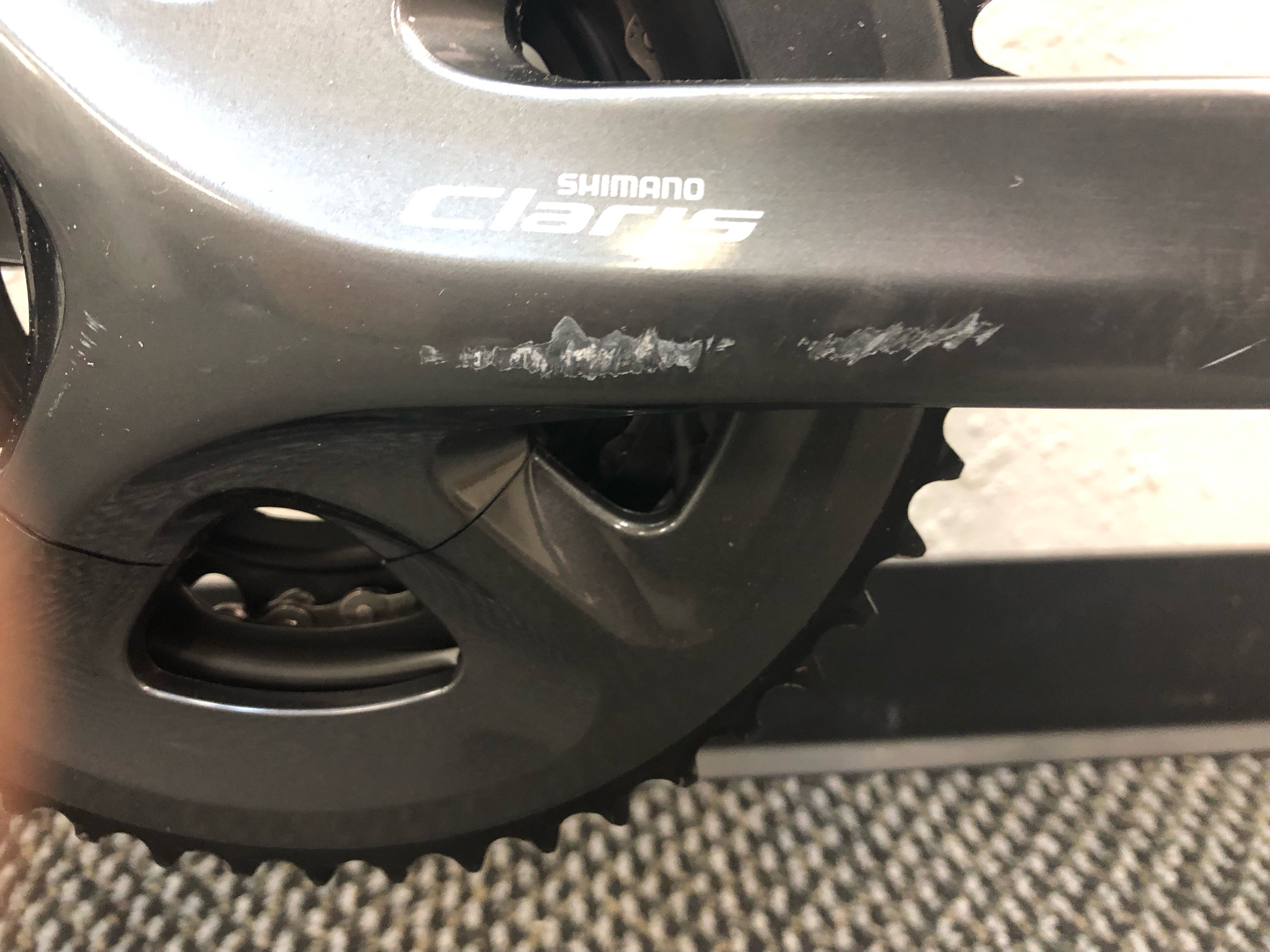

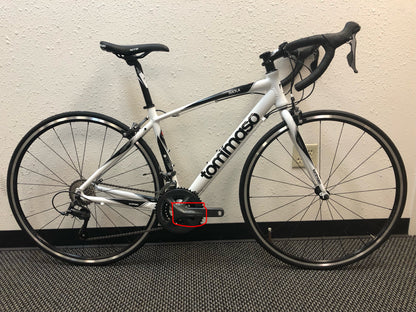

  • DEMO BIKE: Scratched Crank Arm.  Please see images.
  • ROAD BIKE RE-DEFINED: The Imola is our best selling road bike for a reason - it is the perfect combination of performance + value.
  • SHIMANO CLARIS R2000: Enjoy 24 gears of shifting power and performance on Shimano’s most popular drivetrain.
  • VIBRATION DAMPENING TECHNOLOGY: Vibration Dampening Technology, providing reduced road vibrations and increased control.
  • SUPER LIGHT ALUMINUM FRAME: Featuring Super Light 6061 Alloy for unbeatable durability and corrosion resistance.
  • TOMMASO ULTRACOMPACT HANDLEBARS: So you can utilize all riding positions with ease -- for added comfort and control.
  • READY TO RIDE: All bikes come fully tuned and adjusted with our Ready to Ride Build. From box to the road in minutes!
  • VALUE: All our bikes are backed by a lifetime frame & fork warranty and responsive customer service. The 14 Day Test Ride does not apply to Demo Bikes.

KEY FEATURES

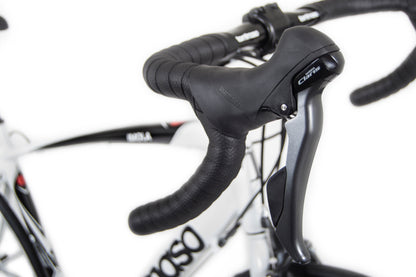

Shimano Claris R2000: The most popular of all Shimano drivetrain, because it’s precise, smooth, ultra-reliable and durable. With 3x8 gearing you’ll go fast on the flats and tackle the climbs.

VDT (Vibration Dampening Technology): Tommaso forks use a thicker steel, which increases durability and reduces vibrations for a smoother ride.

SLA (Super Light Aluminum): Hardened, lightweight, corrosion resistant 6061 alloy makes this frame light, non-rusting and durable. T

Tommaso UltraCompact Handlebars: UltraCompact flattop bars allow you to easily utilize all bar positions, maximizing efficiency, comfort, and reducing hand pressure.

OGS (Optimized Geometry System): Designed to put you in the optimal position, the Tommaso compact frame geometry lets you push your riding farther, while keeping your back and neck happy.

WTB Volt Saddle: The Volt Saddle is incredibly lightweight, while optimal padding and pressure relief zones, to protect soft tissue for all day comfort.

Corsa TC20 Wheels: A strong and reliable wheelset with 20 Front and 24 Rear spokes and a 20mm rim profile allow you to cut through the air.

DESCRIPTION

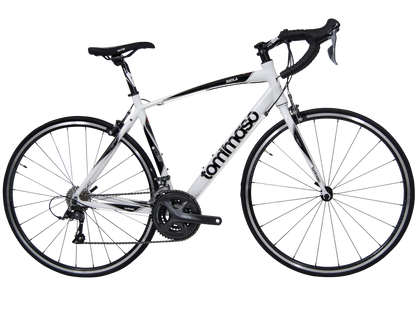

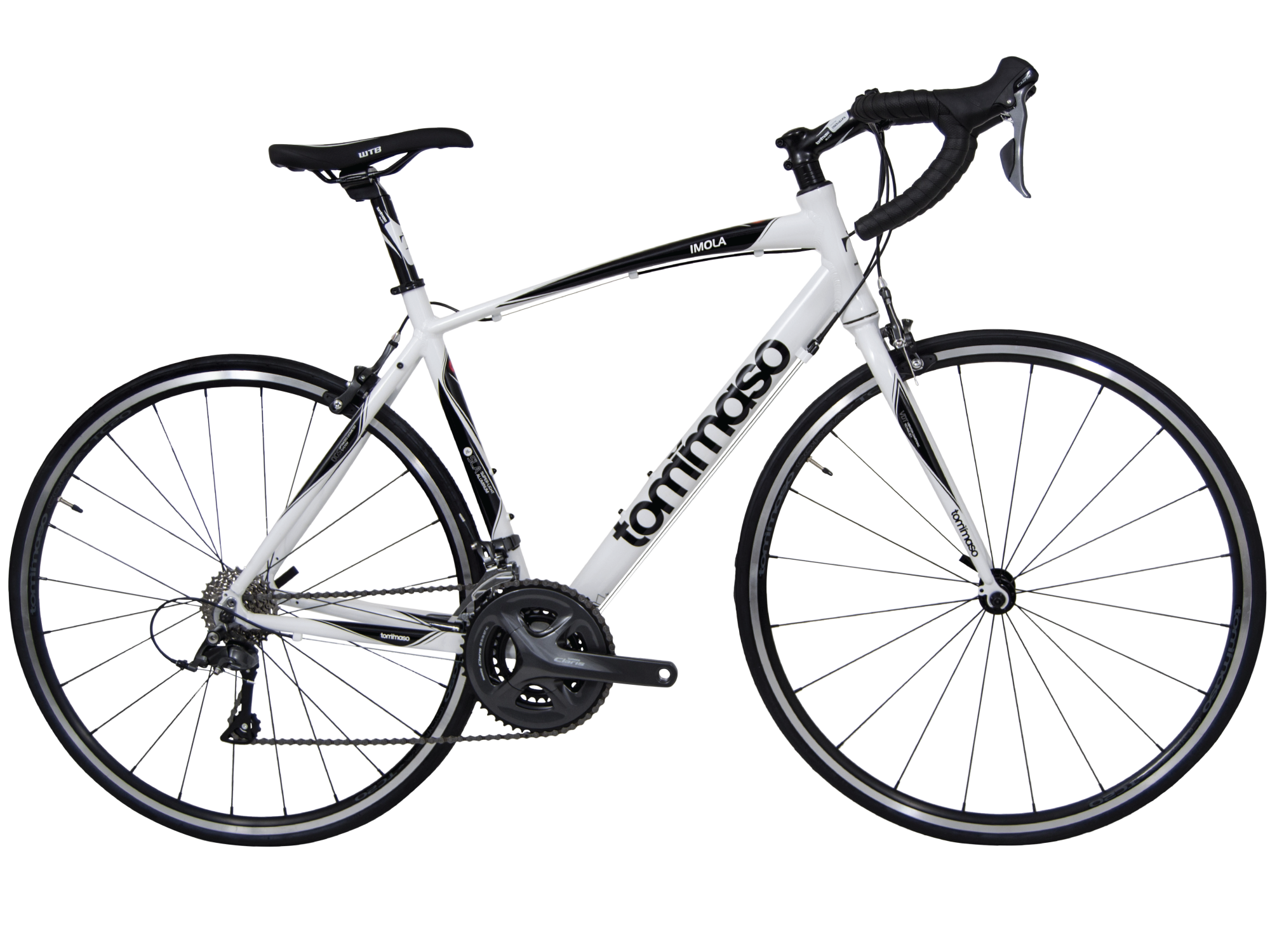

The Imola road bike is designed for every rider looking for an affordable way to enjoy the benefits of road cycling. We start with our Super Light Aluminum frame, paired with our vibration dampening fork to give you a lightweight, comfortable frame that will last a lifetime of hard riding. The Imola features the reliable shifting of an upgraded Shimano Claris R2000 drivetrain, coupled with the stopping power of Claris dual pivot brakes. The Imola also features Tommaso TC20 wheels, an ultracompact handlebar and a comfortable WTB Volt saddle. These added features combined with Claris components gives you hands-down the best performance for your money. Whether you are using the Imola to get back into shape, commute to work, or tackle your local century ride, the Imola has what it takes to go the distance.

The Imola, like every Tommaso bike, is backed by a LIFETIME frame and fork warranty, 14 Day Test Ride, and USA based customer service so you can ride confidently knowing the Tommaso Team is here for you

JOIN THE RIDE!



need help finding the right bike?

specifications

FRAMESET & COCKPIT

Frame

Tommaso 6061 SLA Aluminum Compact Road Frame

Fork

Tommaso SST Steel with Aluminum Steer Tube

Sizes

XXS, XS, S, M, L, XL

Headset

1-1/8" Threadless Integrated

Handlebar

Tommaso Ultralight Alloy Compact Flat Top Bar

Handlebar Width

400mm (XXS, XS Frame) / 420mm (S, M, L Frames) / 440mm (XL Frame)

Handlebar Drop

125mm

Handlebar Tape

Tommaso Cork Tape Black

Stem

Tommaso Ultralight Sport Series Aluminum (+/- 7°)

Stem Length

75mm (XXS, XS Frame) / 90mm (S Frame) / 105mm (M Frame) / 120mm (L, XL Frames)

Saddle

WTB Volt - Tommaso Logo

Seatpost

Tommaso TRS Ultralight Race Series Aluminum 27.2mm

Pedals

Composite Flat

DRIVETRAIN

Shifters

Shimano Claris R2000

Front Derailleur

Shimano Claris R2000 (3-spd)

Rear Derailleur

Shimano Claris R2000 (8-spd)

Cassette

Shimano Claris 11-28t - 8spd

Speeds

3x8 (24 Total Speeds)

Crankset

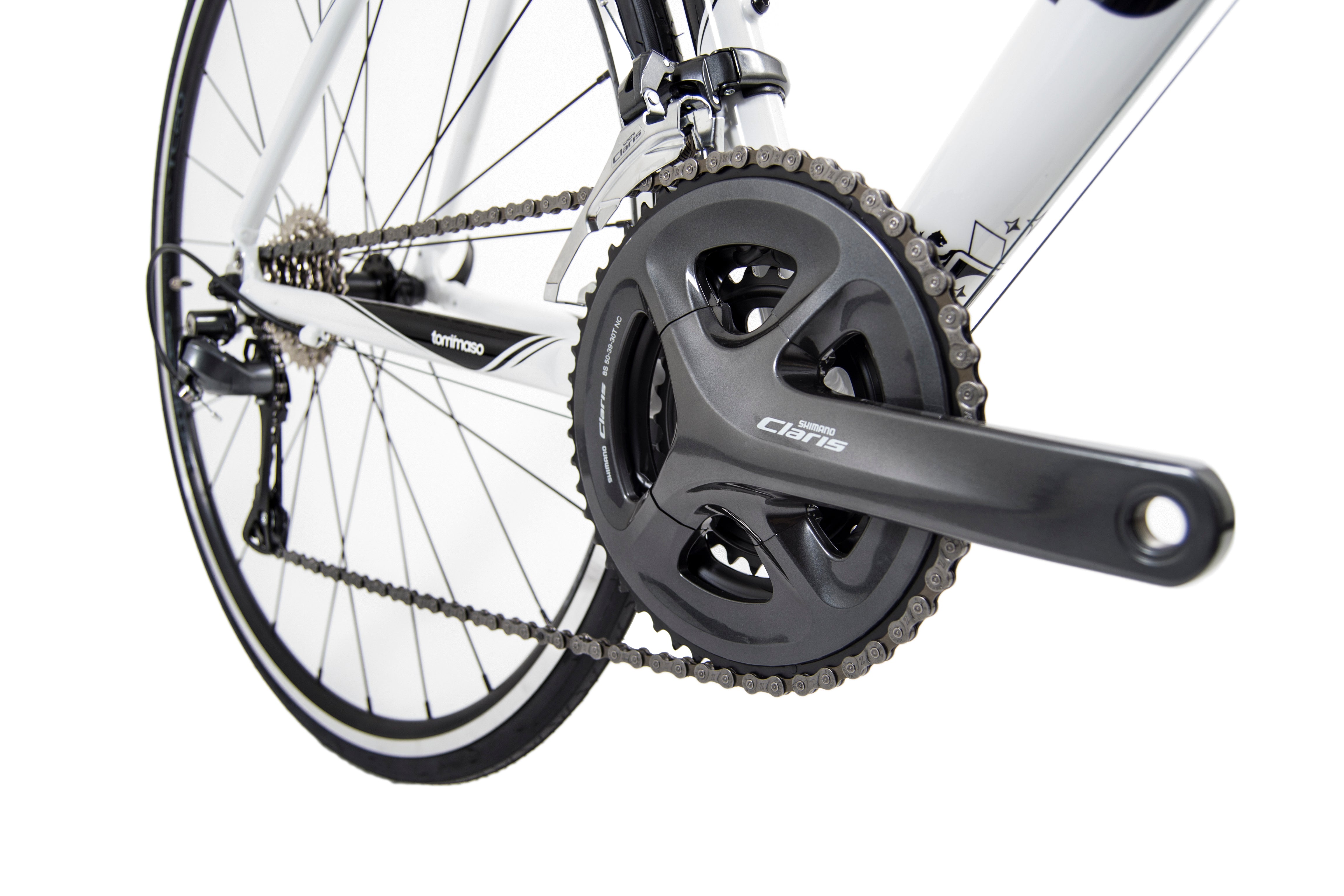

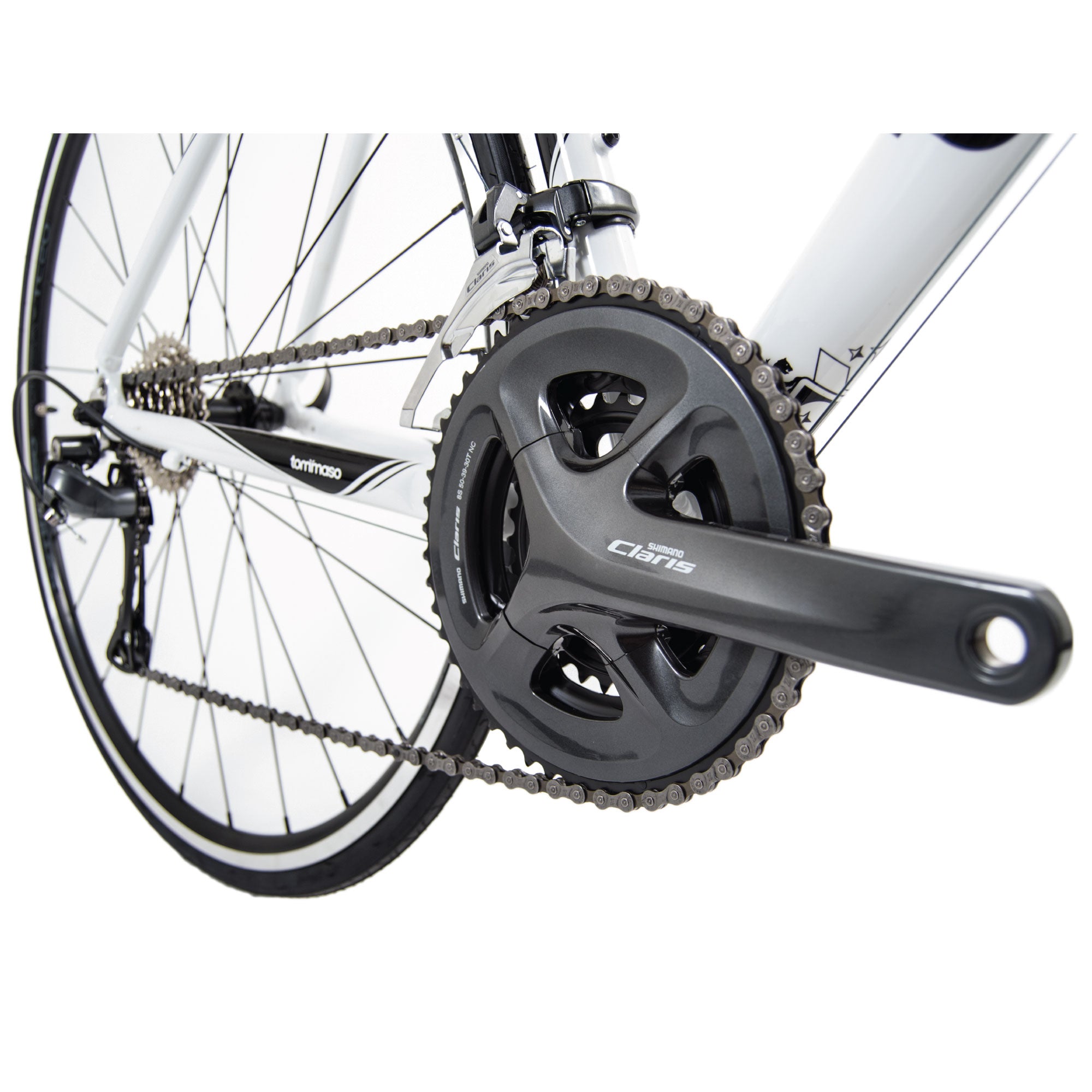

Shimano Claris Triple R2000 30/39/50T

Crank Arm length

165mm (XXS, XS Frames) / 170mm (S, M Frames) / 175mm (L, XL Frames)

Chain

KMC Z-72 (8spd Chain)

Bottom Bracket

BB - ES300

BRAKES & WHEELS

Brakes

Shimano Claris Brake Calipers

Brake Levers

Shimano Claris

Wheelset

Tommaso TC-20 Wheelset - 23mm Rim - 20 Front/24 Rear Spokes

Tires

Kenda K152 700x25

Tubes

700 x 25c

GEOMETRY

A - Seat Tube

B - Top Tube

C - Top Tube - Effective

D - Seat Tube Angle

E - Head Tube Angle

F - Head Tube (mm)

G - Fork Offset

H - Chainstay

I - Wheelbase

FRAME SIZE XXS XS S M L XL

Recommended Height

4'9" - 5'2"

5'2" - 5'6"

5'6" - 5'8"

5'8" - 5'11"

5'11" - 6'2"

6'2"- 6'5"

Seat Tube (mm)

440

450

480

510

540

570

Top Tube (mm)

500.7

506.3

525.2

539.5

555.7

571.6

Top Tube (mm) - Effective

515

525

545

560

575

590

Chainstay (mm)

410

410

410

410

410

410

Wheelbase (mm)

967

973.9

989.3

999.4

1009.7

1024.9

Fork Offset (mm)

45

45

45

45

45

45

Head Tube Angle (deg)

71

72

72

72

72.5

72.5

Seat Tube Angle (deg)

75

74

73.5

73

73

73

Head Tube (mm)

125

135

150

170

190

210

Stand over Height (mm)

670

720

745

770

795

820

Stem (mm)

70

80

80

90

100

100

Crank (mm)

165

165

170

170

175

175

sizing guide

Inseam Measurement: distance from ground to just below groin. Make sure to have about an inch clearance over Top Tube.

FRAME SIZE HEIGHT TOP TUBE

XXS

4'9" - 5'2"

670mm

XS

5'2" - 5'6"

720mm

S

5'6" - 5'8"

745mm

M

5'8" - 5'11"

770mm

L

5'11" - 6'2"

795mm

XL

6'2" - 6'5"

820mm

Determine post clearance by lorem ipsum dolor sit amet, consectetue

FRAME SIZE HEIGHT INSEAM

XS

5'2" - 5'6"

5'2" - 5'6"

S

5'6" - 5'8"

5'6" - 5'8"

M

5'8" - 5'11"

5'8" - 5'11"

L

5'11" - 6'2"

5'11" - 6'2"

XL

6'2" - 6'5"

6'2" - 6'5"
